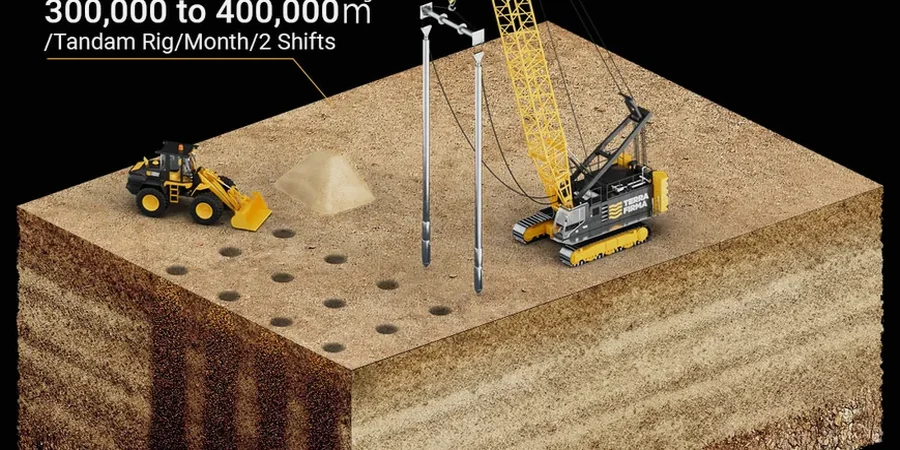

Barrie’s geology splits in two: the sandy plains near Kempenfelt Bay, dominated by the Oro Moraine outwash, and the dense silty tills blanketing the escarpment slopes to the west. A warehouse slab in the south end sits on 6 meters of loose, saturated sand that will settle under cyclic loading, while a subdivision in Ardagh Bluffs rests on stiff glacial till that only needs shallow compaction. This contrast forces a different approach to Improvement depending on which side of Highway 400 you’re on. For the loose deposits, vibrocompaction design becomes the logical path—achieving relative densities above 70% without excavation or imported fill. The procedure relies on a hanging vibrator penetrating under its own weight, rearranging grains into a denser state, and we verify the outcome with CPT testing before and after treatment.
Effective vibrocompaction design starts with a grain-size curve: if fines exceed 10%, densification alone won't work—you need a different tool.
Process overview
Local context
A four-storey residential building near the Allandale waterfront was designed on spread footings with an allowable bearing pressure of 200 kPa. The geotechnical baseline showed loose sand lenses from 3 to 8 meters depth, with SPT N-values as low as 6. Without treatment, differential settlement would have cracked partition walls within the first two winters. The design team specified vibrocompaction to densify the lenses and achieve a uniform post-treatment CPT tip resistance above 10 MPa. Mid-treatment, we hit a pocket of organic silt that wouldn’t densify—the vibrator just churned it. That zone required a localized over-excavation and replacement with compacted granular fill before resuming the grid. The lesson is simple: even with solid vibrocompaction design, Barrie’s lacustrine deposits can surprise you, and the field engineer must be ready to adapt the pattern on the fly.
Visual overview
Relevant standards
NBCC 2020 – Part 4, Structural Design (seismic site class determination post-improvement), ASTM D6913/D6913M-17 – Standard Test Methods for Particle-Size Distribution (Gradation) of Soils, ASTM D5778-20 – Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils
Additional services
Vibrocompaction Trial Program
Full-scale field trial on a representative zone, including pre- and post-CPT soundings, to calibrate probe spacing and energy input before production work begins.
Production Design Package
Stamped design drawings showing grid layout, sequencing, depth targets, and acceptance criteria tied to CPT tip resistance and sleeve friction values.
QA/QC Verification & Reporting
Post-treatment CPT testing at grid centroids, statistical analysis of achieved relative density, and a final report with as-built records for municipal permit closure.
Typical parameters
Top questions
What soil types in Barrie are suitable for vibrocompaction?
Clean sands to slightly silty sands with less than 10–12% passing the #200 sieve. The Oro Moraine deposits and granular fill zones along the Highway 400 corridor are typical candidates. Glacial till and clay-rich lacustrine soils require alternative methods.
How is vibrocompaction design verified after treatment?
We use CPT soundings per ASTM D5778 at the centroid of each compaction triangle. The acceptance criterion is usually a minimum tip resistance of 10 MPa or a relative density above 70%, depending on the structural loading and seismic site class per NBCC.
How long does a typical vibrocompaction design and execution take in Barrie?
A design package runs 2–3 weeks from receiving the geotechnical baseline. Field production for a standard 1,500 m² footprint is 5–8 working days, plus 2 days for post-treatment CPT verification.
What does vibrocompaction design cost for a Barrie project?
Design fees range from CA$1,780 for a small single-structure lot to CA$6,660 for a multi-building commercial site requiring trial testing and detailed QA/QC. These figures cover the engineering package, not the field execution by the compaction contractor.
Can vibrocompaction be used for seismic liquefaction mitigation in Barrie?
Yes. In NBCC seismic site class E or F profiles with loose saturated sands, vibrocompaction can densify the deposit to a state where excess pore pressure generation is negligible. We design the grid to target relative densities above 80% and confirm with CPT-based liquefaction triggering analyses.
