Barrie's subsurface is dominated by the complex stratigraphy of the Lake Simcoe basin—rhythmic sequences of silt, glaciolacustrine clay, and the occasional sand lens deposited by retreating Laurentide ice sheets. With the water table often encountered within 2 to 4 meters of grade across the city's low-lying areas, any excavation deeper than a single basement level introduces significant lateral earth pressure and hydrostatic uplift. Anchor design here cannot rely on generic bond stress assumptions. The stiff clay tills below downtown Barrie, for instance, exhibit overconsolidation ratios that demand pull-out verification through sacrificial testing rather than empirical correlations alone. Our team approaches each project with site-specific load-transfer analyses, integrating data from in-situ pressuremeter tests where the variability of the Sunnybrook Till warrants it.
Bonded length in Barrie's laminated silts must be verified by on-site creep testing—empirical values from southern Ontario alone are insufficient for safe lock-off.
Process overview
Local context
With a population exceeding 150,000 and a building stock that mixes century-old masonry with modern glass towers, Barrie's downtown intensification creates tight excavation scenarios where anchor failure is not an option. The primary risk involves progressive anchor relaxation in the laminated silt units that dominate the city's central corridor—a phenomenon observed in several Ontario projects where groundwater seepage eroded the grout-soil interface. A poorly designed passive system in these conditions can allow wall deflection to accumulate over weeks, cracking adjacent utilities and pavements. Our verification protocol includes lift-off testing at 7, 28, and 90 days post-installation, tracking load retention against the predicted relaxation curve. Where the NBCC 2020 seismic hazard indicates a 2% in 50-year spectral acceleration that, combined with site amplification on deep clay, can double the lateral demand, we factor in ductility-based reduction coefficients only after confirming the anchor head can accommodate the required displacement without brittle rupture.
Relevant standards
CSA A23.3-19 (Design of Concrete Structures, Annex D), NBCC 2020 (Seismic Hazard and Foundation Provisions), PTI DC35.1-14 (Recommendations for Prestressed Rock and Soil Anchors), ASTM A416/A416M-18 (Steel Strand for Prestressed Concrete), OPSS.MUNI 206 (Excavation Support Systems)
Additional services
Active Anchor Design & Field Testing
Full design of multi-strand post-tensioned anchors including load-transfer analysis in Barrie's tills. We supervise sacrificial pull-out testing, creep monitoring, and lift-off verification to confirm the unbonded length remains free of grout intrusion.
Passive Anchorage & Deadman Systems
Design of grouted bar anchors or deadman blocks for sheet pile walls and shallow excavations. Our calculations account for the passive wedge interaction with Barrie's layered silts, ensuring the failure surface develops entirely within the designed soil mass.
Corrosion Protection & Longevity Audits

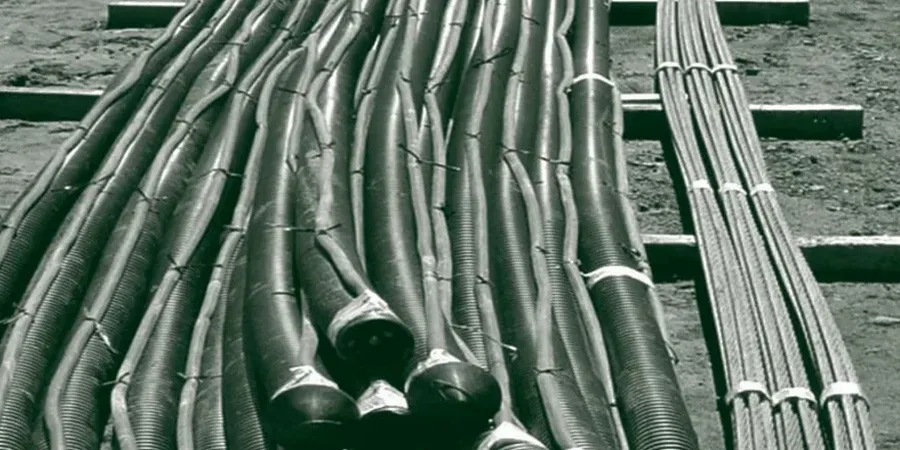

Specification of double-corrosion-barrier systems suitable for the slightly acidic groundwater common in the Oro Moraine recharge area, including epoxy-coated strand and corrugated sheathing with controlled grout cover.
Typical parameters
Top questions
What is the price range for a tied-back anchor design and testing program in Barrie?
For a complete service covering design, installation supervision, and field testing of active/passive anchors, budgets typically range between CA$1,430 and CA$4,830 depending on the number of anchors, access constraints, and the required corrosion protection class. A project with five rows of permanent anchors on a tight downtown lot will naturally be at the higher end due to the extended monitoring period.
How do Barrie's glacial lake deposits affect anchor bond capacity?
The glaciolacustrine silts and clays beneath Barrie are heavily overconsolidated due to past ice loading, which gives them high undrained shear strength but also a tendency to soften and relax around the grout bulb if water is present. We address this by specifying neat cement grout with a water/cement ratio not exceeding 0.45, and by conducting sustained-load creep tests for a minimum of 60 minutes to confirm that the bonded length is stable under the lock-off load.
Do active anchors require maintenance after construction in this climate?
Yes, permanent anchors in Barrie should undergo periodic lift-off checks—typically at one year and five years post-installation—to confirm that the residual load has not dropped below 70% of the design lock-off. The deep freeze-thaw cycles can induce small movements in the anchor head connection if the wall facing was not properly isolated from frost heave, so we include a monitoring schedule in the project closeout documentation. More info.
