The geological contrast between Barrie’s downtown core near Kempenfelt Bay and the newer subdivisions spreading south toward Innisfil is stark — and it dictates entirely different liquefaction risk profiles. Downtown, where older infrastructure rests on glaciolacustrine silts and sands deposited by Lake Algonquin, the combination of shallow groundwater and loose granular soils creates conditions where excess pore pressure can accumulate rapidly during a seismic event. Farther south, the till veneer over limestone bedrock provides a more competent bearing stratum, but isolated pockets of saturated sand still require careful investigation. Our soil liquefaction analysis uses In-Situ — predominantly SPT and CPT — to calculate factor of safety against liquefaction triggering at each critical depth, following the simplified procedure codified in Youd and Idriss (2001) and compatible with the seismic hazard values published in the 2020 National Building Code of Canada. For sites where the SPT blow count drops below 15 in saturated zones above 6 metres depth, we extend the analysis to estimate post-liquefaction settlement and lateral spreading displacement, integrating the CPT test when the stratigraphy demands continuous profiling of thin silt seams that the split spoon would miss.
Liquefaction is not just a sand problem — in Barrie’s glaciolacustrine silts, the fines content often controls the cyclic resistance, and ignoring it can flip the factor of safety from 1.3 to 0.9.
Process overview
Local context
The drill rig we mobilize for Barrie projects is a truck-mounted CME-55 with an automatic SPT hammer calibrated to an energy ratio of 76%, which eliminates the rod-energy correction uncertainty that plagues older donut-hammer data still found in some municipal borehole logs. In Barrie’s tight urban lots near the waterfront — where access is limited and vibration-sensitive utilities run shallow — we often switch to a track-mounted CPT rig that pushes a 10 cm² cone at 2 cm/s, collecting sleeve friction and pore pressure data without the noise and vibration of hammering. A common risk we identify in the Allandale neighbourhood is a thin, loose sand lens trapped between two varved clay layers: the SPT might average 18 blows over 18 inches, but the 6-inch increment breakdown reveals a 4-inch pocket at 4 blows that would liquefy under a magnitude 6.0 scenario. Our analysis flags these thin layers because the factor of safety calculated on the average N-value alone misses the weakest horizon — and that horizon is the one that will trigger a flow slide if it drains toward the excavation face.

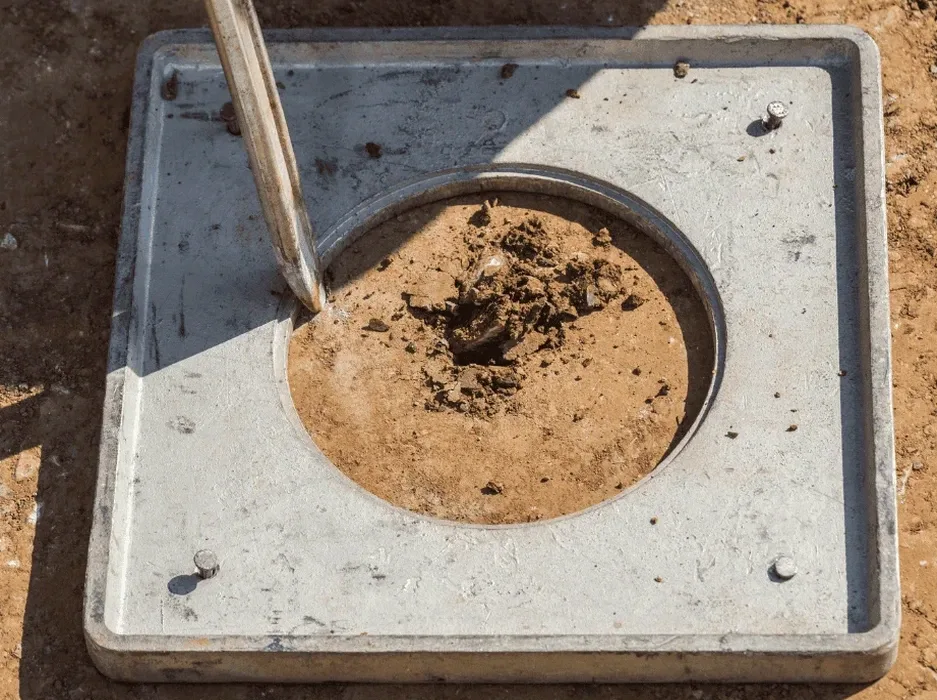

Visual overview
Relevant standards
NBCC 2020 — Division B, Part 4, Seismic Hazard and Site Classification, ASTM D1586-18 — Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, ASTM D5778-20 — Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, Youd et al. (2001) — Summary Report: Liquefaction Resistance of Soils, NCEER/NSF Workshops
Additional services
Seismic Site Classification and Liquefaction Screening
We execute SPT borings to 20 metres depth, measure groundwater, and classify the site per NBCC Table 4.1.8.4-A. The liquefaction screening report includes a borehole log with N60 values, fines content from laboratory testing, a CRR-vs-CSR plot for each test depth, and a tabulated factor of safety against liquefaction triggering. If the site class emerges as E or F due to liquefiable thickness exceeding 3 metres, we flag the requirement for a site-specific ground response analysis.
Post-Liquefaction Settlement and Improvement Feasibility
For sites where the triggering analysis yields a factor of safety below 1.1, we estimate the volumetric strain and corresponding settlement using the Ishihara-Yoshimine chart, calibrated to the relative density inferred from CPT tip resistance. The report also compares Improvement options — vibrocompaction, stone columns, or rigid inclusions — suitable for Barrie’s mixed silty-sand profile, with commentary on achievable post-treatment N-values and the reduction in settlement risk.
Typical parameters
Top questions
Does Barrie’s seismic hazard really justify a liquefaction study for a low-rise building?
The NBCC 2020 requires a Seismic Site Classification for all buildings covered under Part 4. If the site class falls into E or F, the designer must account for potential soil amplification and strength loss. Several areas near Kempenfelt Bay have a shallow water table and loose sands that classify as Site E once the liquefaction potential is evaluated. A screening-level analysis costs far less than a foundation retrofit after the fact.
What is the typical cost range for a liquefaction analysis in Barrie?
For a standard residential or light commercial lot, a complete liquefaction screening including two SPT boreholes, laboratory index testing, and a signed engineering report typically falls between CA$3,250 and CA$5,220. The final cost depends on access conditions, depth to bedrock, and whether CPT testing is added to resolve thin-layer stratigraphy.
How deep do you test, and what happens if you hit bedrock early?
We target 20 metres for a full seismic site classification, but in parts of south Barrie the Paleozoic limestone bedrock can appear at 8 to 12 metres. When refusal occurs, we terminate the boring at bedrock and classify the site based on the overburden profile. A shallow rockhead often improves the site class and reduces liquefaction risk, but we still evaluate the saturated soil column above rock for its potential to develop excess pore pressure.
Can you use existing borehole data from a previous geotechnical report?
We can review historical logs if they include SPT N-values with hammer type, groundwater readings, and sample descriptions with fines content estimates. However, most older Barrie reports used a donut hammer without energy calibration, which introduces an unknown correction factor. In many cases we recommend at least one calibration boring with our auto-trip hammer to anchor the old data to a known energy ratio.
How do you handle lateral spreading risk for a waterfront property on Lake Simcoe?
Lateral spreading is a function of the liquefiable layer thickness, the free-face geometry, and the post-earthquake residual strength. For waterfront lots we survey the bathymetry and slope angle, then run a Newmark-type displacement analysis using the site-specific acceleration time histories scaled to the NBCC uniform hazard spectrum. The output is a displacement estimate that the structural engineer uses to design the foundation connection and utility tie-ins.
